EM-Motor

Brushless motor

Lower noise

Contra angle: 1:1 (360° rotation)

Features

• High performance brushless endo motor, with long service life.

• Built-in more than 100 mainstream file systems.

• The motor handpiece has 10 memory programs(P0-P9)

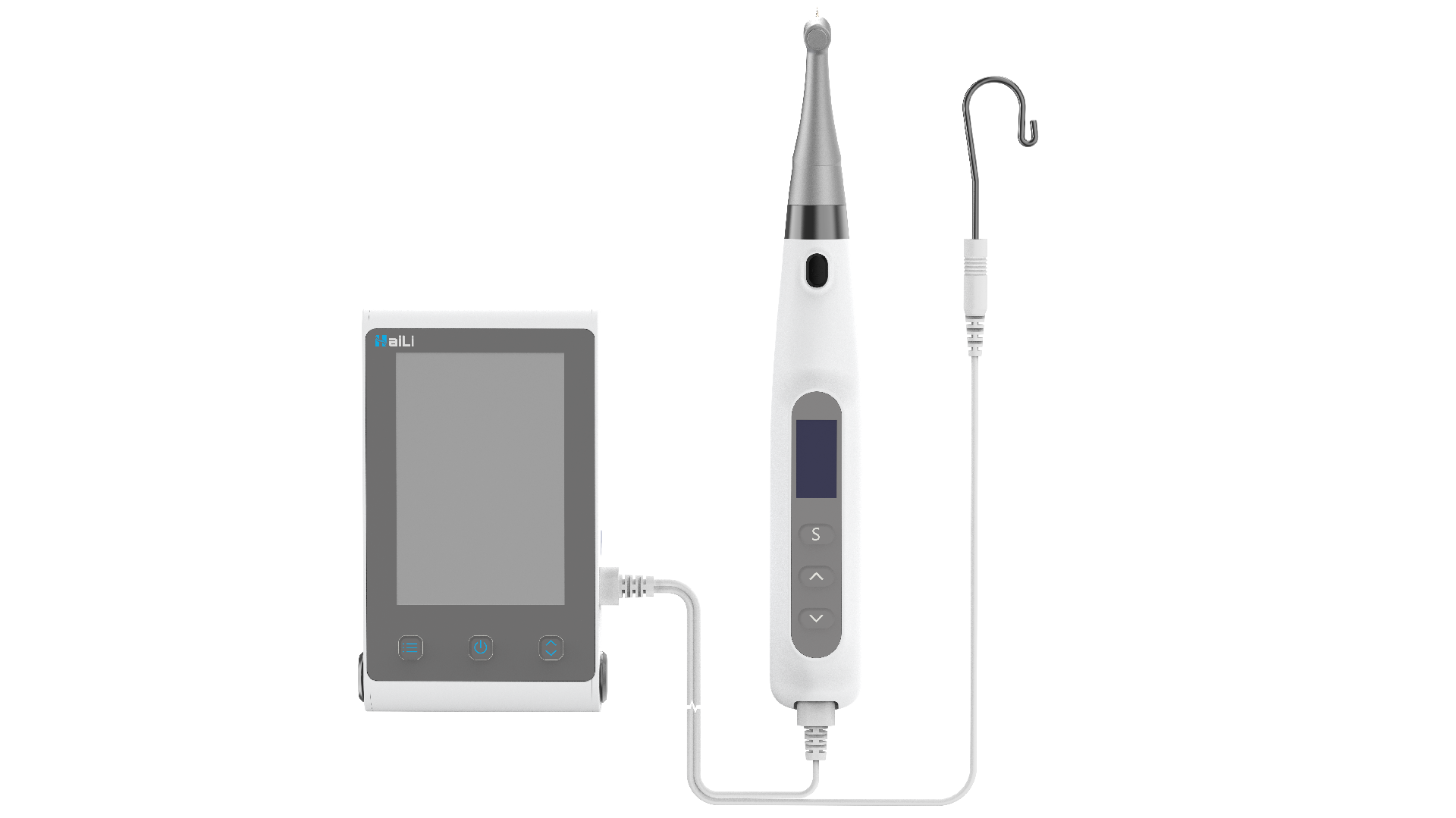

• Can be connected with AL-Pex series locator for measuring.

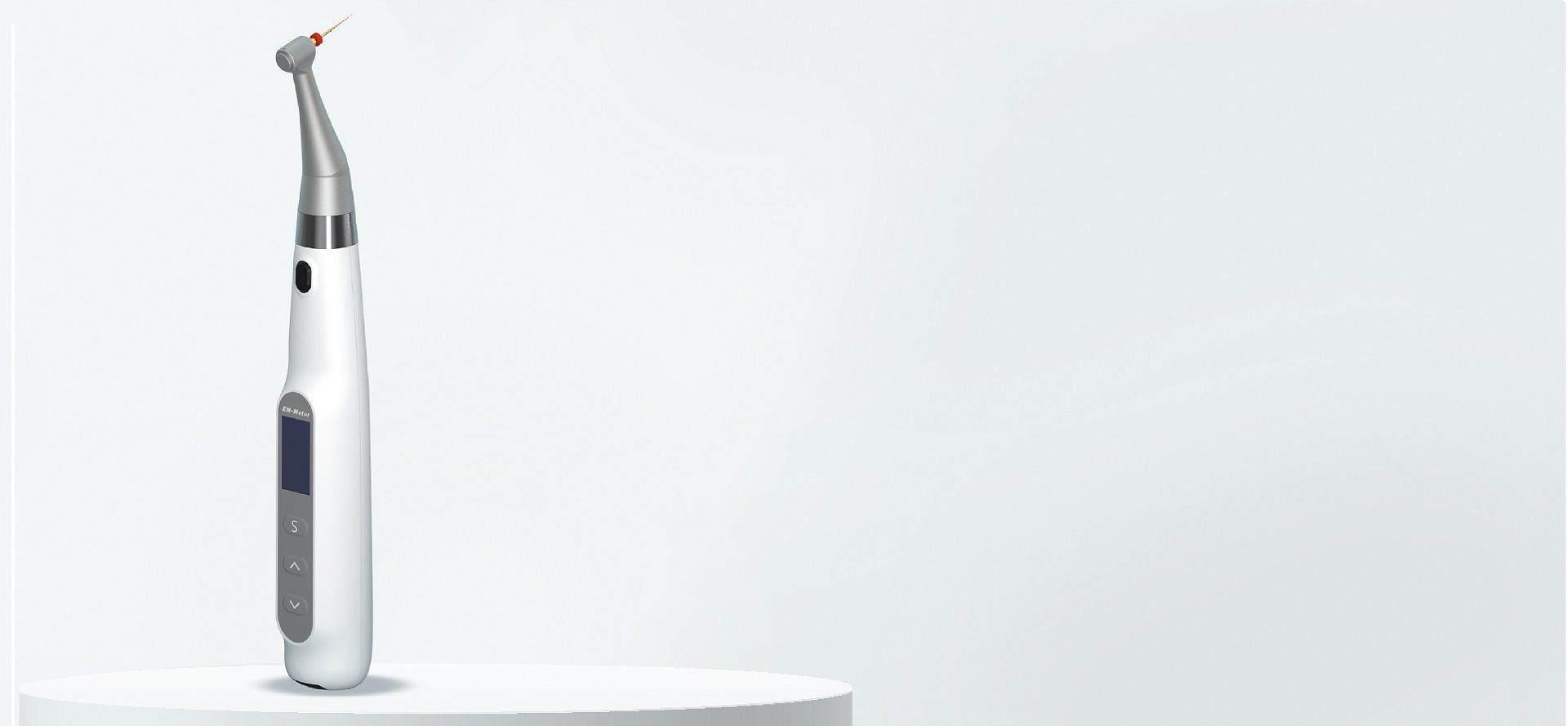

• Wireless Handpiece

Primary technical parameters

• Dimensions: 225mm (length) × 29mm (width) ×27mm (height)

• Speed range: 50r/min - 1200r/min.

• Torque: 0.4N.cm - 5.0N.cm

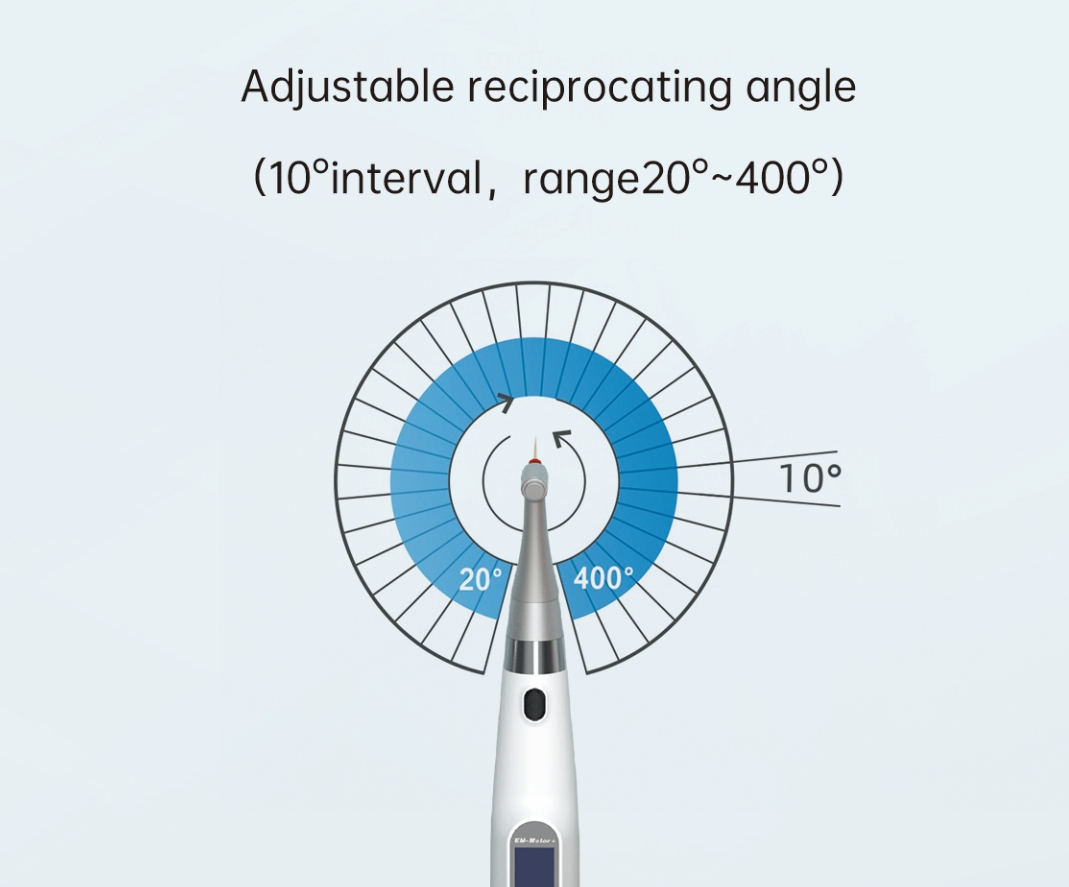

• Mode：CW、CCW、REC、ATR

• Power supply：DC 3.7V, 2000mAh；

• Power adapter: Input：AC100-240V, 50/60Hz 0.2A max; Output: DC5V/1A;

• Classification by type of protection against electric shock: Class II.

• Classification by degree of protection against electric shock: Class BF.
